Emerson KL2001X1-BB1

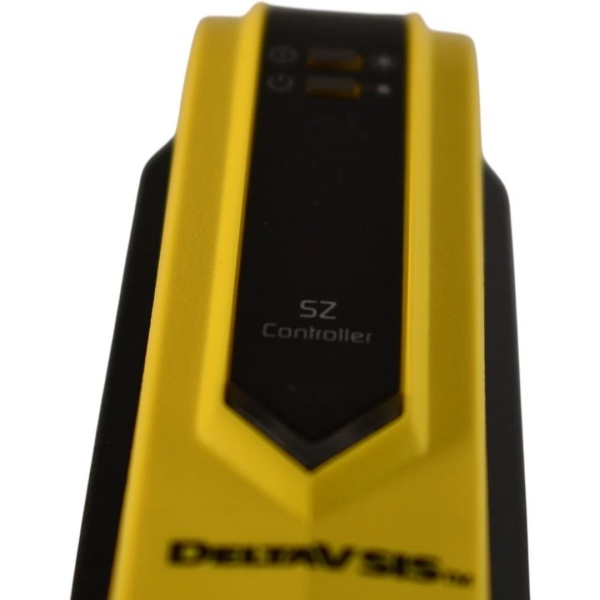

Emerson KL2001X1-BB1 SZ Controller Overview
| Item | Description |
|---|---|
| Product Positioning | The Emerson KL2001X1-BB1 SZ Controller is a core control unit within the Emerson DeltaV system’s SS3001 series. It performs local control, logic computation, and field I/O interaction functions. |
| Application Scenarios | Designed for process control systems operating in hazardous areas (Ex IIC Gc, ATEX FM19, etc.), such as chemical plants, oil and gas facilities, and other industries requiring safety-instrumented systems. |

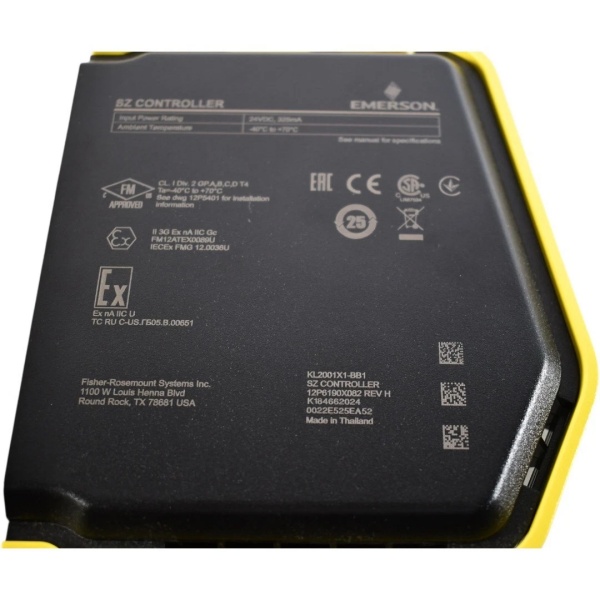

| Main Technical Specifications | • Rated Power Supply: +24 V DC, 325 mA • Operating Temperature: -40 °C to +70 °C • Relative Humidity: 5 % – 95 % (non-condensing) • Shock/Vibration: 10 g (½ s sine) / 1 mm p-p (2–13.2 Hz) • Air Cleanliness: ISA-S71.04-1985 Class G3 • Safety Rating: II 3G Ex ec IIC Gc (ATEX FM19, IECEx FMG 19.0019U) • Certifications: CE, UKCA, US SR and others |
| Key Features | • No field calibration required; contains no serviceable internal components, minimizing maintenance cost. • Installation and removal permitted only in non-hazardous zones to ensure operational safety. • Seamless integration with other DeltaV modules (e.g., KL2101X1-BA1 I/O Card, KL2001X1-BD1 Ethernet I/O Card). • Supports dual-controller redundancy to enhance system reliability. |
| Physical Dimensions | Standard 100 mm × 50 mm × 10 mm (approx. 0.36 kg) |
| Common Companion Modules | • SS3001 (includes KL2001X1-BB1, KL4001X1-BA1, KL1604X1-BA1) • RSS3001 (redundant version RKL2001X1-BB1, etc.) • KL2101X1-BA1 (CHARM I/O Card) • KL2001X1-BD1 (Ethernet I/O Card) |
| Application Examples | • Hazardous-area process control: Implements local logic control in explosion-proof zones of chemical installations. |
Summary
The KL2001X1-BB1 is a specially engineered SZ Controller developed by Emerson for the DeltaV DCS platform. It features certified explosion protection and a wide operating temperature range, making it suitable for deployment in high-risk industrial environments. The controller has no user-serviceable parts and must be installed only in verified non-hazardous areas. It requires no field calibration and integrates seamlessly with other DeltaV modules to form a complete control network. Furthermore, it supports redundant configurations to maximize system reliability and uptime.
Main Brand:
ABB Allen-Bradley Alstom Bently Emerson Foxboro
GE MOOG Schneider Woodward HIMA Honeywell
First hand source, affordable price. Spot inventory!
•Shipping Port: Xiamen
•Ship to you via Fedex/DHL/TNT/UPS/EMS
•Package: Original packing with cartons
Regarding DCS
A Distributed Control System (DCS) is a computer-based system used to automate, monitor and control complex industrial processes. It is essentially a large network of controllers that are distributed throughout a plant or facility, all working together to keep the process running smoothly.
Here’s a breakdown of how a DCS system works:
1. Sensors:These devices collect data from the physical process, such as temperature, pressure, flow rate, and level.
2. Controllers:These are programmable devices that receive data from the sensors and send control signals to actuators.
3. Actuators:These devices take physical action based on the signals they receive from the controllers, such as opening or closing valves, starting or stopping pumps, or adjusting heater settings.
4. Operator stations:These are the human-machine interfaces (HMI) that allow operators to monitor the process, make changes to setpoints, and troubleshoot problems.
5. Communication network:This network connects all of the devices in the DCS system together, allowing them to share data and control signals.
